title	Notes from Kickoff

Below is the start of translating the uServices definitions of seating capabilities to a technology neutral tabular format as agreed in our kick-off meeting on October 18th. Please take a look, iterate, comment and let me know if you have questions Paul Boyes

Agreed by Group:

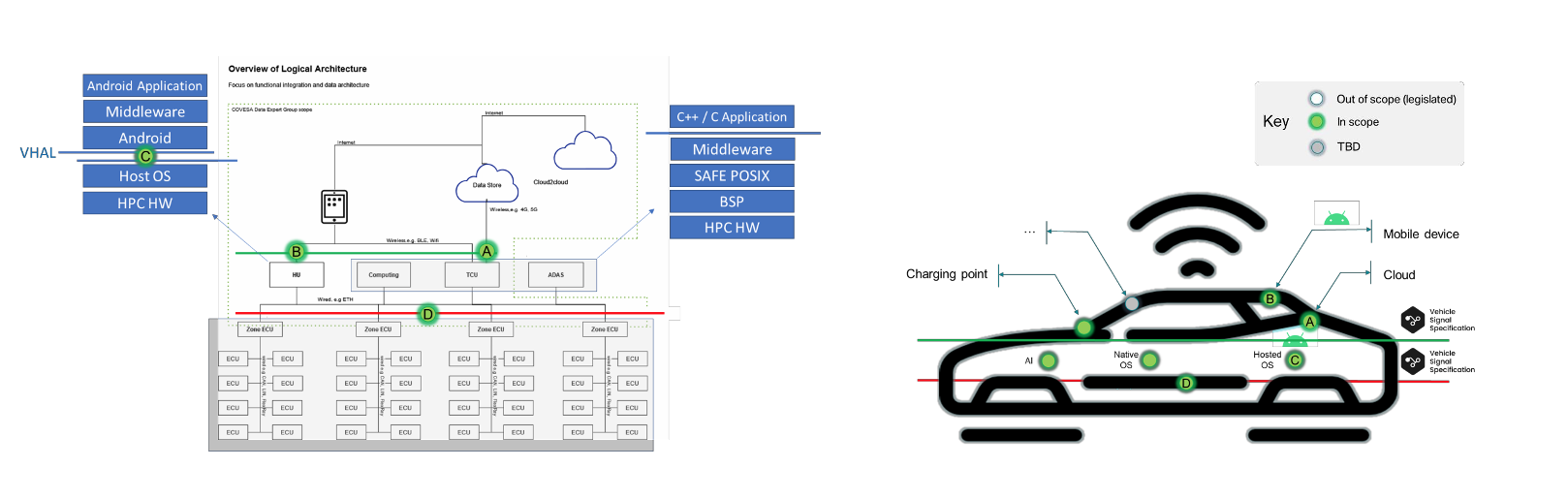

Start a position D in architecture - see architecture diagram below
Safety considerations to be noted but not exhaustively

...

Terminology Alignment (WIP)

Seatting.pptx

Aligning on information types is critical.

Image Removed

Bolsters and Bladders:

Image Removed

AImage Removed(Seat Height or Seat Up/Down)

BImage Removed Seat Forward/Backward

CImage Removed Seat Recline

DImage Removed Cushion Extension

EImage Removed Cushion Tilt

FImage RemovedHeadrest Height or Headrest Fwd/Backward

Notes:

- Seating accounts for over 1/5th of VSS.yaml. This is due to the many facets of seating and the number of instances.
- Seat Configuration:
  - Vehicle.Cabin.SeatRowCount - number of rows - defaults to 2
  - Vehicle.Cabin.SeatPosCount - array of number of seats per row - defaults to 2,3 which is 2 in row 1 and 3 in row 2

- - Even though the default says only 2 seats in row 1, generated (yaml) it has Driver, Middle and Passenger
- Related:
  - Vehicle.VehicleIdentification.VehicleSeatingCapacity - provides seating capacity vehicle
  - Vehicle.Cabin.DriverPosition - driver left, middle or right

Seat Identity

Identifying a specific seat within a vehicle. This is based on location within the vehicle.

Information TypeDefinitionValuesIllustration #

Information Type	Values (per GM uServices)	Illustration #

BMW	Ford	GM	Volvo Cars	VSS Alignment / Mapping	Android Alignment / Mapping	Notes
Seat

Id / Location DataSeat

(Instances)

Seat identity for 3 rows with 3 seats per row,

front

front to back

(looking towards front of vehicle from within the vehicle)

row1_left

row1_driver
or
row1_passenger
by region / config

Vehicle.Cabin.Seat

Vehicle.

Row1.DriverSidealigned? - NO

Cabin.Seat.DriverPosition

Vehicle.Cabin.Seat.Row1.DriverSide

VehicleAreaSeat.

Driver and Passenger can be mapped to row1_left, etc...

row1_center

Vehicle.Cabin.Seat.Row1.Middle

aligned? - ?


row1_right			row1_driver or row1_

right

passenger
by region / config

Vehicle.Cabin.Seat.Row1.PassengerSide

aligned? - NOrow2_


row2_left						Vehicle.Cabin.Seat.Row2.DriverSide

aligned? - NO

row2_center

Vehicle.Cabin.Seat.Row2.Middle

aligned? - ?


row2_right						Vehicle.Cabin.Seat.Row2.PassengerSide

aligned? - NO


row3_left						Vehicle.Cabin.Seat.Row3.DriverSide

aligned? - NO


row3_center						Vehicle.Cabin.Seat.Row3.Middle

aligned? - ?


row3_right						Vehicle.Cabin.Seat.Row3.PassengerSide

aligned? - NO

Seat Identity Illustrations

tbd

Seat

...

Components

Seat components that are movable or controllable, electrically driven.

Component
Moveable Seating Component (Electrically Driven)
Complete seat All

Information Type

Values

Illustration #

BMW

Ford

GM

Volvo Cars

VSS Alignment / Mapping

Android Alignment / mapping

Notes

Seat Component

Moveable Seating Component (Electrically Driven)

Complete seat

All

Added

Vehicle.Cabin.Seat is the complete seat definition.
- Vehicle.Cabin.Seat.Row1.DriverSide would be an instance.

Lumbar

Top
Middle
Lower

5

top =5a
mid =5b
lower =5c

Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Lumbar - Adjustable lumbar support mechanisms in seats allow the user to change the seat back shape.
- Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Lumbar.Height - mm - Height of lumbar support. Position is relative within available movable range of the lumbar support. 0 = Lowermost position supported.
- Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Lumbar.Support - percent - lumbar support (in/out position). 0 = Innermost position. 100 = Outermost position.

Differs: Lumbar is only one piece in VSS not three components

SEAT_LUMBAR_VERTICAL

SEAT_LUMBAR_FORE_AFT

Cushion Side

Differs: Lumbar is only one piece in Android
Cushion Side Bolster

Need number

Pictures would be good

focus must be on Mechatronic components

Right and Left Back (upper) bolsters

12

right = 12a
left = 12b

"lower bolsters"

Inflation

Infalation

level 0-100%

Differs: Does not exist in VSS

SEAT_CUSHION_SIDE_SUPPORT

Align lumbar top, mid,


Backrest Side Bolster

8

11

right = 11a
left = 11b

"upper bolsters"

Right and Left Cushion (lower) bolsters

Inflation level 0-100%

Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.SideBolster - Backrest side bolster (lumbar side support) settings.
- Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.SideBolster.Support percent - Side bolster support. 0 = Minimum support (widest side bolster setting). 100 = Maximum support.

Differs: SideBolster is represented as one piece vs two

SEAT_LUMBAR_SIDE_SUPPORT

Upper Shoulder (fwd/backward)

9

Differs: Does not exist in VSS. Is it needed?

Differs: Does not exist in Android

Backrest (was Cushion Front)

10

same as cushion above or is this "Back"?

Vehicle.Cabin.Seat.Row1.DriverSide.Backrest - Describes signals related to the backrest of the seat.

Cushion Extension

Blue thing

Thigh Extension?

see video

Either works

Headrest

Vehicle.

- Vehicle.Cabin.Seat.Row1.DriverSide.

Headrest - Headrest settings

Vehicle.Cabin.Seat.Row1.DriverSide.Headrest.Height - mm Seat position on vehicle z-axis. Position is relative within available movable range of the seating. 0 = Lowermost position supported.

- Backrest.Recline degrees - Backrest recline compared to seat z-axis (seat vertical axis). 0 degrees = Upright/Vertical backrest. Negative degrees for forward recline. Positive degrees for backward recline.

SEAT_BACKREST_ANGLE_1

SEAT_BACKREST_ANGLE_2

Cushion Extension

13

Blue thing

Thigh Extension?

see video

Either works

Airbag

Vehicle.Cabin.Seat.Row1.DriverSide.

Airbag

Seating - Describes signals related to the seat bottom of the seat.
- Vehicle

Vehicle

- .Cabin.Seat.Row1.DriverSide.

Airbag

- Seating.

IsDeployed - boolean - Airbag deployment status. True = Airbag deployed. False = Airbag not deployed.

Length - Length adjustment of seating. 0 = Adjustable part of seating in rearmost position (Shortest length of seating).	Differs: Does not exist in Android
Headrest	4					Vehicle.Cabin.Seat.Row1.

PassengerSide.AirbagDirectionDirection of seat or component movement

Forward - toward the front of the vehicle

Needs Clarification.
Percent of total? clicks? x, y, z axis values?foredepends on the componentAI: align this definition . Is Fold a direction?

Backward - toward the back of the vehicle

aftdepends on the component

Up - toward the roof of the vehicle

depends on the componentrelates to height like:

DriverSide.Headrest - Headrest settings
- Vehicle.Cabin.Seat.Row1.DriverSide.Headrest.Height - mm Seat position on vehicle z-axis. Position is relative within available movable range of the seating. 0 = Lowermost position supported.
- Vehicle.Cabin.Seat.Row1.Middle.Headrest.Angle - Headrest angle, relative to backrest, 0 degrees if parallel to backrest, Positive degrees = tilted forward.

SEAT_HEADREST_ANGLE

SEAT_HEADREST_FORE_AFT

SEAT_HEADREST_HEIGHT

Airbag

Vehicle.Cabin.Seat.Row1.DriverSide.Airbag

- Vehicle.Cabin.Seat.Row1.DriverSide.

Backrest.Lumbar.Height

Down - toward the bottom of the vehicle

depends on the component

Inflate - fill with air

increasedepends on the component

Deflate - remove air

decreasedepends on the component

Tilt / Recline (angles)

anglesdepends on the component

- Airbag.IsDeployed - boolean - Airbag deployment status. True = Airbag deployed. False = Airbag not deployed.
Vehicle.Cabin.Seat.Row1.PassengerSide.Airbag

VSS has deployed but not enabled.

SEAT_AIRBAG_ENABLED

Has enabled only not deployed

Should we consider extending VSS for other airbags.

Neck Scarf (fan)

6

Differs: Does not exist

Add to VSS?

Seat Belt (height)

Like:

Vehicle.Cabin.Seat.Row1.DriverSide.

Backrest.Recline -

degrees - Seat z-axis depends on seat tilt. This means that movement of backrest due to seat tilting will not affect Backrest.Recline as long as the angle between Seating and Backrest are constant. Absolute recline relative to vehicle z-axis can be calculated as Tilt + Backrest.Recline.

Vehicle.Cabin.Seat.Row1.DriverSide.Headrest.Angle -

degrees - Headrest angle, relative to backrest, 0 degrees if parallel to backrest, Positive degrees = tilted forward.

Swivel

Position

position on horizontal plane (x-axis) or vertical plane (z-axis) of seat or component

needs clarification

Position vs Direction

Should height be separate from position?

Is y-axis ever needed?

Vehicle.Cabin.Seat.Row1.DriverSide.Position -

Seat position on vehicle x-axis. mm - Position is relative to the frontmost position supported by the seat. 0 = Frontmost position supported.

Vehicle.Cabin.Seat.Row1.DriverSide.Height -

mm - Seat position on vehicle z-axis. Position is relative within available movable range of the seating. 0 = Lowermost position supported.

Aligned? - ?

AI: align what position means

Tilt Angle

tilt angle of seat or component (also known as recline)

duplicate to Tilt / Recline (angles)

duplicate to Tilt / Recline (angles) under "direction" above

Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Recline -

degrees - Seat z-axis depends on seat tilt. This means that movement of backrest due to seat tilting will not affect Backrest.Recline as long as the angle between Seating and Backrest are constant. Absolute recline relative to vehicle z-axis can be calculated as Tilt + Backrest.Recline.

IsBelted
- Boolean
Vehicle.Cabin.Seat.Row1.DriverSide.SeatBeltHeight
- Seat belt position on vehicle z-axis. Position is relative within available movable range of the seat belt. 0 = Lowermost position supported.

SEAT_BELT_BUCKLED

SEAT_BELT_HEIGHT_MOVE

SEAT_BELT_HEIGHT_POS

Seat Component Illustrations (maintained on Miro)

Image Added

Bolsters and Bladders:

Image Added

Seat & Component Movements or Positions

Words describing control parameters or changeable properties related to movement or position.

Information Type

Definition

Values

Illustration #

BMW

Ford

GM

Volvo Cars

VSS Alignment / Mapping

Android Alignment / Mapping

Notes

Direction

Direction of seat or component movement

Forward - toward the front of the vehicle

fore

depends on the component

Applied by seat or component like:

SEAT_FORE_AFT
SEAT_LUMBAR_FORE_AFT

Is Fold a direction?
Team agreed it is a capability

Backward - toward the back of the vehicle

aft

depends on the component

Up - toward the roof of the vehicle

depends on the component

Applied by Seat or Component like:

Vehicle.Cabin.Seat.Row1.DriverSide.Height
Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Lumbar.Height
Vehicle.Cabin.Seat.Row1.DriverSide.Headrest.

Angle -

degrees - Headrest angle, relative to backrest, 0 degrees if parallel to backrest, Positive degrees = tilted forward.

Seat Heating and Cooling Data

Temperature

(Copied from VSS)

-100 = max cooling
100 = max heating
0 = off

~~Temperature Controlled Element Mode~~

On

~~addedIs "On" covered by heat, cool, or vent?~~

~~Off~~

~~Cool~~

~~Vent~~

~~Heat~~

Fan Speed

Off

~~delete covered by Seat temp modeConcur with comment from BMW~~

Auto

Level 1

Level 2

Level 3

Level 4

~~added~~

Level 5

Neck Scarf (fan)

fan speed
temperature

Massage DataMassage Capabilityyes/no or true/falsewe need a general discover mechanismOverlaps with with Seat Massage TypeMassage StatusOn/OffOverlaps with Seat Massage Type

Height

Applied by seat or component like:

SEAT_HEIGHT
SEAT_LUMBAR_VERTICAL

Down - toward the bottom of the vehicle

depends on the component

Inflate - fill with air

increase

depends on the component

Applied by inflatable Component like:

Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Lumbar.Support percent - lumbar support (in/out position). 0 = Innermost position. 100 = Outermost position.
Vehicle.Cabin

Vehicle.Cabin

.Seat.Row1.DriverSide.Backrest.

Switch

SideBolster.

Massage - Switches for SingleSeat.Massage.Vehicle.Cabin.Seat.Row1.DriverSide.Switch.Massage.IsDecreaseEngaged - Decrease massage level switch engaged (SingleSeat.Massage).Provide / get Massage PatternsList of available massage patterns for a specific seat, including none. Seat Massage Type

Off
Roll
Knead
Anti Fatigue
Pulse
Stretch
Lumbar
Shoulder
Wave
Relief
Glide

Need discovery capability as will vary by seat.Massage IntensityIntensity of massage??1-5?Vehicle.Cabin.Seat.Row1.PassengerSide.Massage - Seat massage level. 0 = off. 100 = max massage.Occupant DataSeat Occupancy Status

Unknown

Support percent - Side bolster support. 0 = Minimum support (widest side bolster setting). 100 = Maximum support.

Deflate - remove air

decrease

depends on the component

Tilt / Recline (angles)

angles

depends on the component

Applied by Component like:

Vehicle.Cabin.Seat.Row1.DriverSide.

Switch.Massage.IsIncreaseEngaged - Increase massage level switch engaged (SingleSeat.Massage).

Backrest.Recline -

degrees - Seat z-axis depends on seat tilt. This means that movement of backrest due to seat tilting will not affect Backrest.Recline as long as the angle between Seating and Backrest are constant. Absolute recline relative to vehicle z-axis can be calculated as Tilt + Backrest.Recline.

Vehicle.Cabin.Seat.Row1.DriverSide.Headrest.Angle -

degrees - Headrest angle, relative to backrest, 0 degrees if parallel to backrest, Positive degrees = tilted forward.

Swivel

Position

position on horizontal plane (x-axis) or vertical plane (z-axis) of seat or component

Needs Clarification.
Percent of total? clicks? x, y, z axis values?

Should height be separate?

Is y-axis needed?

Vehicle.Cabin.Seat.Row1.

Middle

DriverSide.

IsOccupied - boolean - is or is not occupied. No Unkown.

Position -

Seat position on vehicle x-axis. mm - Position is relative to the frontmost position supported by the seat. 0 = Frontmost position supported.

Occupied

Empty

Seat Occupant ID??What is this?

Vehicle.Cabin.Seat.Row1.DriverSide.

Occupant.Identifier

Height -

v5.0 use data from Vehicle.Occupant.*.*.Identifier.

Identifier attributes based on OAuth 2.0.

Vehicle.Cabin.Seat.Row1.DriverSide.Occupant.Identifier.Subject

v5.0 - use data from Vehicle.Occupant.*.*.Identifier.
Subject for the authentication of the occupant e.g. UserID 7331677.

mm - Seat position on vehicle z-axis. Position is relative within available movable range of the seating. 0 = Lowermost position supported.

AI: align what position means

Tilt Angle

tilt angle of seat or component (also known as recline)

duplicate to Tilt / Recline (angles)

duplicate to Tilt / Recline (angles) under "direction" above

Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Recline -

degrees - Seat z-axis depends on seat tilt. This means that movement of backrest due to seat tilting will not affect Backrest.Recline as long as the angle between Seating and Backrest are constant. Absolute recline relative to vehicle z-axis can be calculated as Tilt + Backrest.Recline.

Seat Haptics DataDelay Between Pulsesinternal calibration at the moment, based on the requestorHaptic PulsesOther Seat DataChild seat

Installed

addedSeat Belt Status

Fastened

Vehicle.Cabin.Seat.Row1.PassengerSide.IsBelted - boolean - is or is not belted/fastened

Vehicle.Cabin.Seat.Row1.DriverSide.

PassengerSide

Headrest.

SeatBeltHeight - Seat belt position on vehicle z-axis. Position is relative within available movable range of the seat belt. 0 = Lowermost position supported.

Unfastened

Angle -

degrees - Headrest angle, relative to backrest, 0 degrees if parallel to backrest, Positive degrees = tilted forward.

Seat Heating and Cooling

Words describing control parameters or changeable properties related to seat heating and cooling.

Side of Seat

Right
Left

duplicate to "SEATS"Is this side of specific seat?Seat Switch Seat Switch Signals - e.g.

Information Type

Definition

Values

Illustration #

BMW

Ford

GM

Volvo Cars

VSS Mapping

Android Alignment / mapping

Notes

Temperature

OFF
Cooling (level 1, 2, 3)

Heat (level 1, 2, 3)

-100 = max cooling
100 = max heating
0 = off

Vehicle.Cabin.Seat.Row1.DriverSide.

Switch.Backrest.IsReclineBackwardEngaged

See spec and generated schema for details

Capabilities

Column Definitions

Capability: A concise name for the capability
Description: A brief description of the capability and what it does and enables
Inputs: What data (must align with VSS) is required by the capability
Outputs: What data (must align with VSS) is output by the capability
Dependencies: Other capabilities, processes, or systems the capability depends on
Assumptions/Constraints: Any assumptions or limitations that should be considered
Considerations: Including safety, security, performance, regulations, diagnostics…
Location in Architecture: For context where does it sit in an architecture

General questions regarding API invocation:

Can we use "actuate with commands, report with signals" as a general strategy?
Do we use transaction IDs to tie commands to output signals/results?

HeatingCooling Heating or Cooling requsted for the Item. -100 = Maximum cooling, 0 = Heating/cooling deactivated, 100 = Maximum heating	HVAC_SEAT_TEMPERATURE	Should this be heating cooling?
~~Temperature Controlled Element Mode~~		On	~~added~~	~~Is "On" covered by heat, cool, or vent?~~
		~~Off~~
		~~Cool~~		level 1, 2, 3
		~~Vent~~		as predetermined percentages
		~~Heat~~		level 1, 2, 3
Fan Speed		Off	~~delete covered by Seat temp mode~~	~~Concur with comment from BMW~~	Not in VSS	HVAC_SEAT_VENTILATION Not the same
		Auto
		Level 1
		Level 2
		Level 3
		Level 4	~~added~~
		Level 5

Seat Massage

Information Type	Definition	Values	BMW	Ford	Volvo Cars	VSS Alignment / Mapping	Android Alignment / Mapping
Massage Capability	Is the seat capable of providing massage.	yes/no or true/false	we need a general discover mechanism		Overlaps with with Seat Massage Type	Not in VSS	Not in Andriod
Massage Status		On/Off			Overlaps with Seat Massage Type	Vehicle.Cabin.Seat.Row1.DriverSide.Switch.Massage - Switches for SingleSeat.Massage. Vehicle.Cabin.Seat.Row1.DriverSide.Switch.Massage.IsDecreaseEngaged - Decrease massage level switch engaged (SingleSeat.Massage). Vehicle.Cabin.Seat.Row1.DriverSide.Switch.Massage.IsIncreaseEngaged - Increase massage level switch engaged (SingleSeat.Massage).
Massage Types	Available massage types for a specific seat, including none.	Values will vary by OEM, therefore, need a capability to determine types per seat.		Massage Patterns		Not in VSS	Not in Android
Seat Massage Type		Off Roll Knead Anti Fatigue Pulse Stretch Lumbar Shoulder Wave Relief Glide		Need discovery capability as will vary by seat.		Not in VSS	Not in Android
Massage Intensity		Intensity of massage	??		1-5?	Vehicle.Cabin.Seat.Row1.DriverSide.MassageLevel - Seat massage level. 0 = off. 100 = max massage.

Seat Haptics

Haptics are seat or component vibrations used to alert the driver or provide feedback. Typically used by ADAS such as lane departure warning.

Information Type	Definition	Values	Illustration #	BMW	Ford	GM	Volvo Cars	VSS Alignment / Mapping	Android Alignment / Mapping
Delay Between Pulses						internal calibration at the moment, based on the requestor		Not in VSS	Not in Android
Haptic Pulses

Seat Occupancy and Safety

Information Type	Values	BMW	Volvo Cars	VSS Alignment / Mapping
Seat Occupancy Status	Unknown			Vehicle.Cabin.Seat.Row1.DriverSide.IsOccupied - boolean - is or is not occupied. No Unkown.
	Occupied
	Empty
Seat Occupant ID		??	What is this?	Vehicle.Cabin.Seat.Row1.DriverSide.Occupant.Identifier - v5.0 use data from Vehicle.Occupant...Identifier. Identifier attributes based on OAuth 2.0. Vehicle.Cabin.Seat.Row1.DriverSide.Occupant.Identifier.Subject v5.0 - use data from Vehicle.Occupant...Identifier. Subject for the authentication of the occupant e.g. UserID 7331677.
Child seat	Installed (true/false)	added
Seat Belt Status	Fastened			Vehicle.Cabin.Seat.Row1.DriverSide.IsBelted - boolean - is or is not belted/fastened Related: Vehicle.Cabin.Seat.Row1.PassengerSide.SeatBeltHeight - Seat belt position on vehicle z-axis. Position is relative within available movable range of the seat belt. 0 = Lowermost position supported.
Seat Belt Status	Unfastened

Other Seat Information

Information Type	Definition	Values	Illustration #	BMW	Ford	GM	Volvo Cars	VSS Alignment / Mapping	Android Alignment / Mapping	Notes
Seat Switch								Seat Switch Signals - e.g. Vehicle.Cabin.Seat.Row1.DriverSide.Switch.Backrest.IsReclineBackwardEngaged See spec and generated schema for details		Address in VSS - Is this needed for capabilities?

Seat Capability Alignment (WIP)

Column Definitions

- Capability: A concise name for the capability
- Description: A brief description of the capability and what it does and enables
- Inputs: What data (must align with VSS) is required by the capability
- Outputs: What data (must align with VSS) is output by the capability
- Dependencies: Other capabilities, processes, or systems the capability depends on
- Assumptions/Constraints: Any assumptions or limitations that should be considered
- Considerations: Including safety, security, performance, regulations, diagnostics…
- Location in Architecture: For context where does it sit in an architecture

General questions regarding API invocation:

- Can we use "actuate with commands, report with signals" as a general strategy?
- Do we use transaction IDs to tie commands to output signals/results?

Seat Movement and Position

Capability	Description	Inputs	Outputs	Dependencies	Assumptions /Constraints	VSS Examples / Mapping	Android Examples / Mapping	Notes
Movement & Position - Control
Move Seat Continuously	Move the identified seat in the specified direction. When a user commands a seat in a certain direction, it will move in that direction until the value is changed. The change (e.g. stop) could come from the user or a hardware limit.	seat direction	status			Vehicle.Cabin.Seat.Row1.DriverSide.Switch.IsForwardEngaged: datatype: boolean description: Seat forward switch engaged (SingleSeat.Position). type: actuator Question: How does something other than a switch use this capability?	SEAT_FORE_AFT_MOVE includes speed.	Android includes speed. VSS does not. Is it needed?
Move Seat to Specified Position	Set the seat position for the identified seat. This is entire seat position forward, back, up down.	seat position	status			Vehicle.Cabin.Seat.Row1.DriverSide.Position Seat position on vehicle x-axis. mm - Position is relative to the frontmost position supported by the seat. 0 = Frontmost position supported. Vehicle.Cabin.Seat.Row1.DriverSide.Height mm - Seat position on vehicle z-axis. Position is relative within available movable range of the seating. 0 = Lowermost position supported.	SEAT_FORE_AFT_POS	What is the position definition? ISO 8895 What is status? Position Status.
Move Seat Component Continuously	Move the identified seat and component in the specified direction. When a user commands a seat component in a certain direction, it will move in that direction until the value is changed. The change (e.g. stop) could come from the user or a hardware limit.	seat component direction	status			Vehicle.Cabin.Seat.Row1.Middle.Switch.Headrest.IsForwardEngaged: datatype: boolean description: Head rest forward switch engaged (SingleSeat.Headrest.Angle). type: actuator Question: How does something other than a switch use this capability?	`SEAT_HEADREST_ANGLE_MOVE`	Different classes of comportment? Certain directions apply to different components? Need to enumerate the components? Component type?
Set Seat Component Position Per Seat	Set the seat component position for the identified seat. This is position of the component only.	seat seat component position angle	status			Applied by Component and Direction like: Vehicle.Cabin.Seat.Row1.DriverSide.Headrest.Height Vehicle.Cabin.Seat.Row1.DriverSide.Headrest.Angle Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Recline Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Lumbar.Height Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Lumbar.Support percent - lumbar support (in/out position). 0 = Innermost position. 100 = Outermost position. Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.SideBolster.Support percent - Side bolster support. 0 = Minimum support (widest side bolster setting). 100 = Maximum support	`Applied by Component and Direction like:` `SEAT_HEADREST_ANGLE_POS`
Store Seat Position	Stores current seat and component positions	seat Seat Occupant ID				N/A	N/A	Personalization not in VSS or Android
Recall Seat Position	Recall seat and component positions	seat seat occupant ID				N/A	N/A	Personalization not in VSS or Android
Fold Headrest	Fold or unfold headrest	Seat Fold or unfold						Align with move seat compontent?
Fold Seat	Fold or unfold seat	Seat Fold or unfold						Align with move seat component
Movement & Position - Status / Data
Get Seat Position Per Seat	Get the seat position for the identified seat. This is entire seat position.	seat position	status
Get Seat Component Position Per Seat	Get

Capability

Description

Inputs

Outputs

Dependencies

Assumptions /Constraints

VSS Examples / Mapping

Notes

Seat Movement & Position - ControlMove Seat IncrementallyMove the identified seat in the specified direction. When a user commands a seat in a certain direction, it will incrementally move in that direction.

seat
direction

status

One request/trigger moves one increment.Move Seat to Specified PositionSet the seat position for the identified seat. This is entire seat position forward, back, up down.

seat
position

status

Vehicle.Cabin.Seat.Row1.DriverSide.Position

Seat position on vehicle x-axis. mm - Position is relative to the frontmost position supported by the seat. 0 = Frontmost position supported.

Vehicle.Cabin.Seat.Row1.DriverSide.Height

mm - Seat position on vehicle z-axis. Position is relative within available movable range of the seating. 0 = Lowermost position supported.

What is the position definition?

ISO 8895

What is status? Position Status.

Move Seat Component IncrementallyMove the identified seat and component in the specified direction. When a user commands a seat component in a certain direction, it will incrementally move in that direction until the user ceases their request.

seat
component
direction

status

Different classes of comportment? Certain directions apply to different components?

Need to enumerate the components? Component type?

Set Seat Component Position Per SeatSet

the seat component position for the identified seat. This is position of the component only.

seat
seat component
position
angle

status

Vehicle.Cabin.Seat.Row1.DriverSide.Headrest.Height
Vehicle.Cabin.Seat.Row1.DriverSide.Headrest.Angle
Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Recline
Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Lumbar.Height
Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.Lumbar.Support percent - lumbar support (in/out position). 0 = Innermost position. 100 = Outermost position.
Vehicle.Cabin.Seat.Row1.DriverSide.Backrest.SideBolster.Support percent - Side bolster support. 0 = Minimum support (widest side bolster setting). 100 = Maximum support.

Get Seat Ids / Locations

Provides the list of seats available in "this" Vehicle

none

Array of:

seat location (like row1_left, row1_center, etc)
Is_Present (true/false)

Seat Movement Illustrations:

A Image Added(Seat Height or Seat Up/Down)

B Image Added Seat Forward/Backward

C Image Added Seat Recline

D Image Added Cushion Extension

E Image Added Cushion Tilt

F Image AddedHeadrest Height or Headrest Fwd/Backward

Seat Heating and Cooling

Capability	Description	Inputs	Outputs	Dependencies	Assumptions /Constraints	VSS Examples / Mapping	Android Examples / Mapping	Notes
Heating & Cooling - Control
Set Seat Temperature Level Per Seat	Set the temperature level for the identified seat	seat seat temperature level	seat seat temperature level				HVAC_SEAT_TEMPERATURE
Set Seat Ventilation Per Seat	Get ventilation level for the identified seat	seat seat temperature level	seat seat temperature level				HVAC_SEAT_VENTILATION
TBD

Seat Heating & Cooling

Store Seat PositionStores current seat and component positions

seat
Seat Occupant ID

Recall Seat PositionRecall seat and component positions

seat
seat occupant ID

Fold HeadrestFold or unfold headrest

Seat
Fold or unfold

Align with move seat compontent?Fold SeatFold or unfold seat

Seat
Fold or unfold

Align with move seat componentSeat Movement & Position

- Status / Data
Get Seat

Position

Temperature Level Per Seat

Get the

seat position

temerature level for the identified

seat. This is entire seat position.

seat

seat

seat
seat

position

status

temperature level				HVAC_SEAT_TEMPERATURE
Get Seat

Component Position

Ventilation Level Per Seat

Get the

seat component position

ventilation level for the identified

seat. This is position of the component only.

seat

seat

seat
seat

component

position

angle

status

Seat Heating & Cooling - ControlTBD

temperature level				HVAC_SEAT_VENTILATION

Seat Massage

Capability	Description	Inputs	Outputs	Dependencies	Assumptions /Constraints	VSS Examples / Mapping	Android Examples / Mapping	Notes
Massage - Control Per Seat
Set Seat Massage Per Seat	Set the massage type and intensity

Seat Heating & Cooling - Status / DataGet Seat Heating Per SeatGet the heating mode and level

for the identified seat

seat
seat

seat temperature mode

seat temperature level

massage type massage intensity	status	It will be difficult to agree on massage types / patterns. So added a capability to determine what massage types or patterns are available per set.

Massage - Status / Data Per Seat
Get Seat Massage

Get Seat Component Heating

Per Seat

Get the

heating mode

massage type and

level

intensity for the identified seat

seat

and component

seat

seat component

seat
seat component
seat temperature mode
seat temperature level

Seat Massage - Control Per SeatSet Seat Massage Per SeatSet the massage type and intensity for the identified seat

seat
seat massage type (includes none?)
massage intensity

status

It will be difficult to agree on massage types / patterns. So added a capability to determine what massage types or patterns are available per set.Seat Massage - Status / Data Per SeatGet Seat Massage Per SeatGet the massage type and intensity for the identified seat

seat

seat
seat massage type
massage intensity

Get Massage Statusidentifies if massage is on or off for specific set(s)

seat
(or all)?

seat
massage status

Get Seat Massage Capabilityidentifies if seats support massage

seat
(or all)?

seat
massage capability

Get Seat Massage Types (Patterns)Provides a list of available massage types for a specific seat. May be none.

seat

list of available massage patterns

Need to consider in what format? Bounded array of string values?

massage type massage intensity
Get Massage Status	identifies if massage is on or off for specific set(s)	seat (or all)?	seat massage status
Get Seat Massage Capability	identifies if seats support massage	seat (or all)?	seat massage capability
Get Seat Massage Types (Patterns)	Provides a list of available massage types for a specific seat. May be none.	seat	list of available massage patterns	Need to consider in what format? Bounded array of string values?

Seat Haptics

Capability	Description	Inputs	Outputs	Dependencies	Assumptions /Constraints	VSS Examples / Mapping	Android Examples / Mapping	Notes
Haptics - Control
Activate Haptics	Activate seat haptic notification for driver's seat	seat (driver only) side (left right both) delay between pulses pulses
Haptics - Status / Data
								Is this needed?

Seat Occupancy and Safety

Capability	Description	Inputs	Outputs	Dependencies	Assumptions /Constraints	VSS Examples / Mapping	Android Examples / Mapping	Notes
Seat Occupant Safety - Status / Data Per Seat
Get Seat Occupant

Safety Per SeatGet the occupant safety status for the identified seat

seat

seat
seat occupancy status
seat belt status

Get Child Seat StatusAllows user to determine if a Child Seat is installed

seat

Seat Haptics - ControlActivate HapticsActivate seat haptic notification for driver's seat

seat (driver only)
side (left right both)
delay between pulses
pulses

What is a haptic seat? Where does it fit?

Use use case to help define.

Provide Seat locations in "this" Vehicle

Safety Per Seat	Get the occupant safety status for the identified seat	seat	seat seat occupancy status seat belt status
Get Child Seat Status	Allows user to determine if a Child Seat is installed	seat	seat Is child Seat Installed

Get Seat LocationsProvides the list of seats available in "this" Vehicle

none

Array of:

seat location (like row1_left, row1_center, etc)

Is_Present (true/false)

Zonal Architecture for Reference

Space shortcuts

JOIN/SIGN UP

GET INVOLVED

COLLABORATIVE PROJECTS

HISTORICAL

Events

Industry Events

COVESA Events

Contact Us

Child pages

Versions Compared

Old Version 69

New Version Current

Key

Terminology Alignment (WIP)

Seat Identity

Seat Identity Illustrations

Seat

Components

Seat Component Illustrations (maintained on Miro)

Seat & Component Movements or Positions

Seat Heating and Cooling

Capabilities

Column Definitions

Seat Massage

Seat Haptics

Seat Occupancy and Safety

Other Seat Information

Seat Capability Alignment (WIP)

Seat Movement and Position

Seat Movement Illustrations:

Seat Heating and Cooling

Seat Massage

Seat Haptics

Seat Occupancy and Safety

Zonal Architecture for Reference

Space shortcuts

JOIN/SIGN UP

GET INVOLVED

COLLABORATIVE PROJECTS

HISTORICAL

Events

Industry Events

COVESA Events

Contact Us

Child pages

Page History

Versions Compared

Old Version 69

New Version Current

Key

Terminology Alignment (WIP)

Seat Identity

Seat Identity Illustrations

Seat

Components

Seat Component Illustrations (maintained on Miro)

Seat & Component Movements or Positions

Seat Heating and Cooling

Capabilities

Column Definitions

Seat Massage

Seat Haptics

Seat Occupancy and Safety

Other Seat Information

Seat Capability Alignment (WIP)

Seat Movement and Position

Seat Movement Illustrations:

Seat Heating and Cooling

Seat Massage

Seat Haptics

Seat Occupancy and Safety

Zonal Architecture for Reference
