Essential Requirements

Essential Requirements should be at a high enough level to be useful, provide shape to and evaluate solutions (Business and/or Product level).  They are not meant to be exhaustive.

Note:  This is just a quick replication of Daniel Alvarez table with a few more columns just to get my thoughts out.  Please contribute, comment, or edit.

Must Have Requirement NameDescriptionBusiness RequirementProduct RequirementVSPECDesiredNotes
Simplicity
  • Must be easy to understand and adopt.
  • Must be human readable
  • Must be easily understood by engineers, analysts
  • Must not be so complex that only a handful of data scientists understand it
  • Must be understandable and useable by engineers within a reasonable period of time (< 1 day?)
  • Must be easy to contribute/add new (signals, elements)
YesThe approach for describing data structures is human-friendly and easy to understand and contribute to.Yes
Technology Agnosticism
  • Must work with a variety of widely industry adopted tools for adoption and cost.
  • Ease of adoption
  • Ease of contribution
  • Must work with a variety of technologies
YesSpecification offers a vocabulary only. It can be exported into multiple formats and could be potentially used in any downstream system, as long as there is a tool for exporting it as desired.Yes
Modularity
  • Adopt and contribute only the pieces needed.
  • Ease of adoption
  • Ease of contribution
  • Must be able to adopt only parts of the model that matter to the user
  • Must be able to extend and override parts of the model as needed for internal and external use
Partly Specification can be split into multiple files that will be read as a whole during the export.Yes
Scalability & Maintainability
  • Ease of adoption
  • Ease of contribution
  • Flexibility
  • Cost
  • Must support a wide variety of vehicle domains (e.g. Seating, HVAC, Entertainment, Engine, etc...)
PartlyYes in the sense that the vocabulary of vehicle properties can be further extended. However, its expressivity is limited and covering more features requires significant work on the tools.Yes
Metadata Resource Uniqueness


PartlyJust the Fully-Qualified Name (fqn) and the UUID that can be constructed from the metadata are unique. Specification of a concept can appear multiple times.Yes

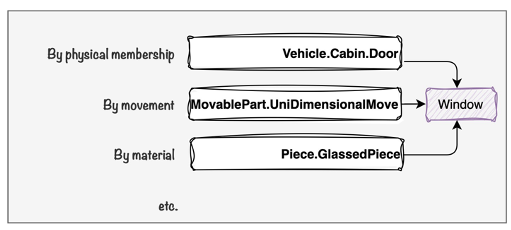

Support for Multiple Classification Schemes


NoOne tree has one dimension only. Paths of the expanded tree create dependencies and moving a concept to another part in the tree is usually painful.Yes
Support for Cross Domain References


NoVSS tree has one dimension only. One could have multiple trees, but (currently) each tree would continue to be an independent domain.Yes
Support for the Specification of Capabilities


NoVSS focuses on the data structure (e.g., datatypes, units, etc.) But, no possible interactions with the specified data are formally described (e.g., Concept Seat is modeled but not the possible operations on that property).YesThere is the concept of Actuators and Sensors.  Actuators do something when set.
Community and Tools
  • Must scale across Automotive and adjacent industries
  • Cost
  • Ease of Adoption
  • Ease of Contribution

NoLimited to COVESA community and the vss-tools (mainly exporters). Any change in the modeling language requires rework of the tools.Yes
Support for Automated Reasoning


NoNo mechanism for semantic correctness and consistency. (e.g., what distinguishes a Car from a Motorcycle? etc.)Partly

























Proposed Solutions

Solution NameDescriptionLinksNotes
Vehicle Signal SpecificationThe overall goal of the Vehicle Signal Specification (VSS) is to create a common understanding of vehicle signals in order to reach a “common language” independent of the protocol or serialisation format.

GitHub Repository:  https://github.com/COVESA/vehicle_signal_specification


Documentation:  https://covesa.github.io/vehicle_signal_specification/


GraphQLGraphQL is a query language for APIs and a runtime for fulfilling those queries with your existing data. GraphQL provides a complete and understandable description of the data in your API, gives clients the power to ask for exactly what they need and nothing more, makes it easier to evolve APIs over time, and enables powerful developer tools.

https://graphql.org/




OMG IDLOMG IDL is a descriptive language used to define data types and interfaces in a way that is independent of the programming language or operating system/processor platform. The IDL specifies only the syntax used to define the data types and interfaces. It is normally used in connection with other specifications that further define how these types/interfaces are utilized in specific contexts and platforms.

https://www.omg.org/spec/IDL/4.2/About-IDL

https://www.dds-foundation.org/omg-dds-standard/

https://marketplace.visualstudio.com/items?itemName=RTI.omg-idl

https://github.com/eProsima/Fast-DDS-Gen
